Wincor Cineo Double Extractor Clutch

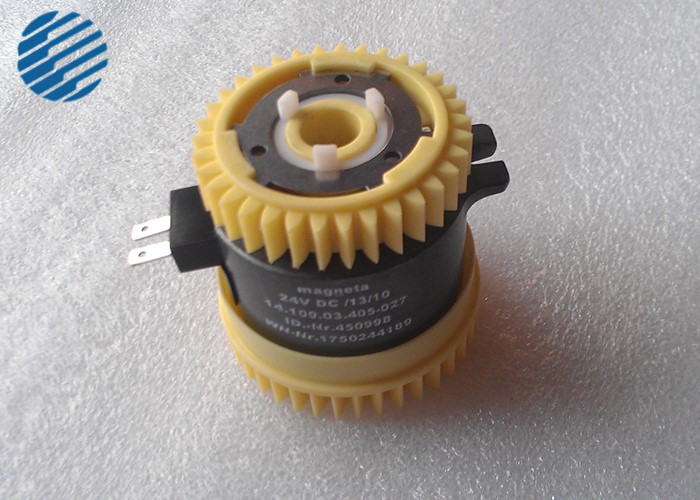

1750244189 Wincor Nixdorf ATM Parts Double Extractor Clutch CMD-V4

Double dispensing unit without DDU (CMD-V4 or VCMD)

A pendulum dispensing shaft is installed for the note dispensing. The drive of

the extractor shaft is provided by the central motor as well as a magnetic

coupling for each extractor shaft. At one end of the extractor shaft there is a

pressure sensor through which the note contact pressure and the message

'Cassette pushed in' are checked. A forward motion of the notes is brought

about by an additional roller in the cassette. Preliminary separation is achieved

by means of an extended inlet slope in the cassette.

The cassette can readily be pushed into the rack with dispensing unit(s). They

engage in place and are locked in the final position. The cassette position is

queried by the pressure sensor. The cassettes can be unlocked with the

release lever on the rack.

Voltages and signals from the controller to the cassette are redirected through

the cassette connector.

The following components are addressed in the dispensing unit.

If the double dispenses from a single cassette in the CMD-V4 become more

frequent, the V gap on the corresponding dispensing unit can be decreased by

increasing both eccentrics (respectively to left and right of the shaft) by one

step, e.g. from A to B. If the V gap is set too high, than no dispensing from the

corresponding cassette will be possible.

Tear-off sensor All safes, installation frames and installation racks have holes for mounting a tearoff sensor. To ensure that the tear-off sensor can be mounted after the device has been installed, a hole for the tear-off sensor has to be drilled at the time the installation frame or the installation rack is mounted. To be able to mount the tear-off sensor, the hole has to be cleaned with a vacuum cleaner and an anchor bolt (e.g. UPAT multicone, Fischer resin cartridge R M) has to be inserted. Thus the alarm technician will be able to mount the tear-off sensor in the safe easily after the device is installed (see also illustration "Mounting structure with CEN III / CEN IV safe" or "Mounting structure with UL safe" in the corresponding sections of the chapter "Installation"). Ask your alarm technician about the size of the hole and the cartridge. The mounting material (threaded rod, cartridge) is to be provided by the alarm technician. The length of the threaded rod depends on the installation frame or the installation rack you use (see chapter "Installation").

Product Detail

1	1750044672 V Module Side Guard Plate
2	1750041948 CMD-V4 38t 49t Gear
3	1750109641 1750192140 Wincor Red Puller V Module Shaft
4	1750041947 Wincor Nixdorf Clutch Assembly For 2050 XE. Magneta 24V
5	1750044668 Measuring Station Sensor Holder Ceramic Assd
6	1750041952 GEAR WHEEL G26 26T
7	1750041951 V Module 25T Gear
8	1750041950 GEAR WHEEL G17 17T
9	1750042174 GEAR WHEEL G19 19T
10	1750035778 DRIVE ROLLER SHAFT CMD V4 ASSY
11	1750035768 THICNESS MEASURING SHAFT ASSY
12	1750020811 Counter rotat shaft assy
13	1750035275 V Module Roller with 3 Wheel Shaft Assy
14	1750035776 DRIVE SHAFT CMD V4 ASSY
15	1750035773 Wincor Nixdorf CASH GUIDE XE
16	1750041251 Wincor Nixdorf Flat Belt, double extractor
17	1750035775 DOUBLE EXTRACTOR CHASSIS 01750035775
18	1750050076 Double Extractor Selenoid
19	1750035761 DOUBLE EXTRACTOR CHASSIS 01750035761
20	1750044604 MAGNET SUPPORT MDMS ASSD
21	1750285564 Cineo clutch
another P/N	1750244189
	1750303098
