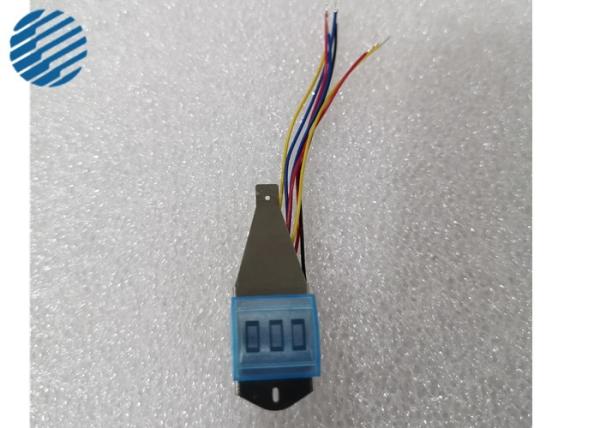

89-030528-000A Diebold Opteva TK 1,2,3 Read ICM 330 Magnetic Head

89-030528-000A Diebold Opteva TK 1,2,3 Read ICM 330 Magnetic Head4

• DN Series™ Motorized Card Reader

The following steps describe the basic operation of the motorized card reader (Figure 2-1).

1.The consumer inserts the card into the slot.

2.The slot has a gate that allows the card to be partially inserted; if the card is properly oriented, the

gate opens and motorized card reader pulls the card in. If the motorized card reader is commanded

to accept chip only cards, the magnetic stripe detection is disabled.

3.The transaction begins when the card is inside the reader.

4.The card is automatically returned to the consumer at the end of the transaction.

3.1

Beginning and Ending a Maintenance Session

The operator should know how to perform the following tasks before using the other procedures in this

section.

•Opening the system to access the card reader.

•Placing the system in the maintenance mode.

•Returning the system to full operation.

Refer to the operator manual for the system for more information about these tasks.

Manually Retrieving Jammed Cards

The consumer's card can sometimes get stuck in the transport mechanism. Use the following steps to

manually remove jammed cards.

1.Place the system in the maintenance mode.

2.To eject a jammed card toward the card reader entry slot, push and hold the plunger of the shut

ter solenoid to open the shutter. Refer to the following figure.

3.Rotate the drive train pulley away from the card slot (counterclockwise) until the card can be re

trieved at the card slot.

• Product Detail

​

• Pics detail
