1750255322 ATM Machine Parts Wincor Frame 15 Inch Soft DDC NDC

Product Categories

TS TECH (HONG KONG) CO.,LTD.

Contact Now

1750255322 ATM Machine Parts Wincor Frame 15 Inch Soft DDC NDC

Ask Lasest Price
Brand Name :	wincor
Model Number :	1750255322
Certification :	CO
Price :	negotiable
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	800pcs in stock
Delivery Time :	1day

Add to Cart

Product Details
Company Profile

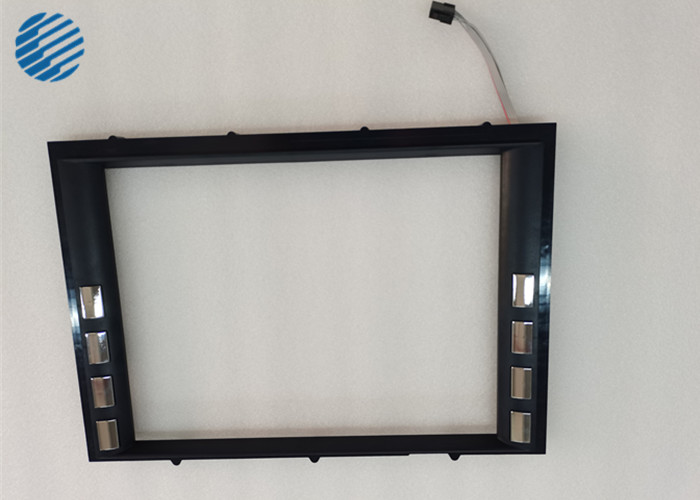

1750255322 ATM Machine Parts Wincor Frame 15 Inch Soft DDC NDC

1750255322 Wincor ATM Parts Frame 15 Inch Soft DDC NDC 01750255322

1750255322 Wincor ATM Parts Frame 15 Inch Soft DDC NDC 01750255322

Services

Note the warning and information labels on the device.

Unless otherwise stated, grasp the components only by the green ledge

when handling them.

The device is equipped with a safety-tested power cable. The. which must

be connected only to a suitable grounded outlet.

hold the plug when removing the power cable. Never pull the cable

itself.

Lay all connecting cables in such a way that they will not be stepped on or

tripped over, damaged or crushed in any way.

Have damaged power cables replaced immediately.

Make sure that there is always free access to the sockets used or to the

electrical circuit-breakers of the house installation.

In case of an emergency (e.g. damaged housing, controls or power cables,

water or foreign objects in the device), proceed as follows:

Deactivate the device immediately by:

Switching off the automatic circuit breaker or removing the fuse insert

from the fuse holder in the distribution box of the building’s electricity

distribution cabinet.

Disconnecting the plug of the power supply cable from the grounded

socket in the building installation;

Switching off the ON/OFF switch on the power distributor.

Interrupting the power connection, if there is one, between the UPS

(uninterruptible power supply) and the device (see section "General

power interruption").

Never connect or disconnect data transmission lines during a

thunderstorm.

Always keep the device’s vents free from obstruction to ensure proper air

circulation and to prevent malfunctions resulting from overheating.

Only use accessories and extension components that have been approved

by us. Nonobservance can result in damage to the system or violations of

regulation concerning safety, radio interference and ergonomic

requirements.

Dispensing in the direction of the customer

1. Dispensing of the requested banknote number one after another from

every cassette (overall max. 60) (k)

2. Transport of the single notes to the multiple-note detection unit (i)

3. Transport of single notes for serial number detection (configuration

dependent) (o)

4. All 'good notes' are stored in the stacking position of the clamp (e)

5. Clamp gets closed with the routing disk

6. Routing disk takes the vertical dispensing position (d)

7. Transport of the bundle to the cash-out position (b)

8. The shutter opens

9. Transport of the bundle to the removal position

10. Note output by the customer

11. The shutter closes

12. Clamp goes back to its stacking position and switches automatically

open (e)

1. - 4. Process as the dispensing in the direction of the customer (vertical

Frontload)

5. Routing disk takes the horizontal dispensing position Frontload (d)

6. Clamp moves in the direction of the dispensing (horizontal

Frontload) (n)

7. Routing disk moves to the reject/retract position (d)

8. Clamps moves in the reject/retract position

9. Routing disk moves to the reject/retract position "Block the route" (d)

10. Clamps moves in the reject/retract cassette as far as possible

11. Routing disks turns in the reject/retract position and moves the

clamp to its reject/retract position by that

12. Transport of the bundle in the reject box of the reject/retract cassette (g)

Product Detail for Cineo part

Items used in	WINCOR Cineo C4060,CINEO C4040,CINEO C4080,CINEO C4560,CINEO C4580,CINEO C2090,CINEO C4090,CINEO C2080
Machine category	CRM
Identification (har dware/software versions)	MOVE_CWAA MOVE_CWAA_EUR_1 029
Display	15″ TFT LCD-Display as standard, semi high bright, high bright
Operation Environmental conditions	Temperature range: +5 °C to +40 °C / Humidity: 5 % to 85 %
Technical details	Supply voltage range: 110 – 120 V; 220 – 240 V ▪ Mains frequency 50/60 Hz ▪ Uninterruptable Power Supply
Cineo other parts as below
1	1750193276 Wincor Nixdorf Main module head w. drive CRS ATS
2	1750150249 Wincor Nixdorf BANKNOTE READER MOVE CWAA
3	1750190808 Wincor Nixdorf TRANSPORT MODULE HEAD CAT2 CASSETTE CRS
4	1750220000 Wincor Nixdorf ATM Parts In Output Module Customer Tray CRS
5	1750214641 Wincor Transter Unit Safe CRS ATS ATM PART
6	1750200435 Wincor Nixdorf ATM Parts Cineo V Module Guide Rail
7	1750133579 Wincor Cineo C4060 Transport Unit Head Escrow CRS ATS-BO-TR
8	1750220022 Wincor Nixdorf INPUT OUTPUT MODULE COLLECTOR UNIT CRS
9	1750143750 WINCOR RM3 Shutter I-O-tray
10	01750202249 WINCOR RM3 Shutter I-O-tray outdoor
11	01750130352 WINCOR RM3 gear wheel z18_m1_HVZ_1.4 C
12	06632107533 wincor rm3 OPT-PHOTO-INTERRPTR GP1A71A
13	01750168286 WINCOR RM3 photointerrupter clip

Pics detail
