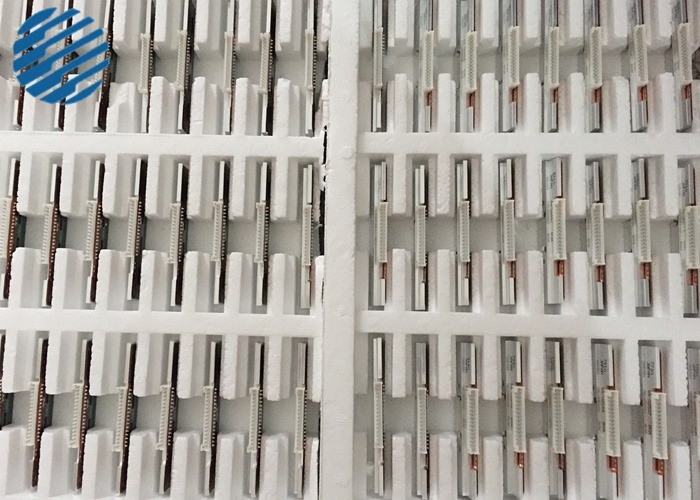

S5677000018 Nautilus Hyosung ATM Parts Printing Engine With Thermal Print Head

Product Categories

TS TECH (HONG KONG) CO.,LTD.

Contact Now

S5677000018 Nautilus Hyosung ATM Parts Printing Engine With Thermal Print Head

Ask Lasest Price
Brand Name :	Nautilus Hyosung
Model Number :	5677000018 / S5677000018
Certification :	CO
Price :	negotiable
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	400pcs in stock
Delivery Time :	1day

Add to Cart

Product Details
Company Profile

S5677000018 Nautilus Hyosung ATM Parts Printing Engine With Thermal Print Head

S5677000018 HYOSUNG ATM PRINTING ENGINE WITH THERMAL PRINT HEAD

S5677000018 HYOSUNG ATM PRINTING ENGINE WITH THERMAL PRINT HEAD

NH ATM Print head structure

The thermal printer selectively heats the thermal paper at a certain position, thereby producing corresponding graphics. Heating is provided by a small electric heater on the print head that is in contact with the thermal material. The heaters are arranged in square dots or strips and are logically controlled by the printer. When driven, a graphic corresponding to the heating element is generated on the thermal paper. The same logic circuit that controls the heating element also controls the paper feed, so that graphics can be printed on the entire label or paper.

The most common thermal printer uses a fixed print head with a heated dot matrix. The print head in the example has 320 square dots, each of which is 0.25mm×0.25mm. Using this dot matrix, the printer can print dots on any position on the thermal paper. This technology has been used in paper printers and label printers.

HYOSUNG ATM Specification

NAUTILUS HYOSUNG ATM parts list
ROW1	PARTNUMBER	Description	ROW2	PARTNUMBER	Description
1	7760000068	PCBA:CST_PP:CDU10	43	S7307000094	UP_KIT: SUB_ASSY:MOLD_ENT
2	7710000023	PCBA:BDM SUB BD	44	S7307000267	UP_KIT:SUB_ASSY:UNIT_BNA_BUNDL
3	S7760000054	UP-KIT:UNIT:BRM:ASSY.TE	45	S7307000263	UP_KIT:SUB_ASSY:REJECT_BNA
4	47042701	KEY-ASSY:V-BRM	46	3281000244	CABLE_ASSY:UNIT_POS_SW:BNA
5	S7430001446	UP_KIT:SUB-ASSY:UNIT:BRM20-BMU	47	2168000030	SENSOR:RPU8702CP_OKAYA
6	S7430001447	UP_KIT:SUB_ASSY:UNIT:BRM20_BMD	48	2168000051	KIS_9002C_TR:C_RAN NK:YELLOW
7	S5611000195	UP_KIT:PCBA:M170EG01:17INCH:CCFL:AUO	49	3281000243	CABLE_ASSY:BOX_POS_SW:BNA
8	7430000809	UP_KIT:SUB_ASSY:REEL_UPPER_TAPE	50	2168000053	KIS_9002C_TR:C_RAN NK:RED
9	7430000805	UP_KIT:SUB_ASSY:REEL_LOWER_TAPE	51	4420000065	PLATE_MOLD:OPEN_BNA
10	7000000226	UP_KIT:UNIT:BILL CHECKER (B CU24)	52	4370000784	K-ASSY_MOLD:UCM_COVER:MX-7600
11	5611000125	UP_KIT:PCBA:NCM-V05F-2:USB CAM	53	2168000055	KIS_9002C_TR:A_RANK:WHITE
12	7760000093	UP_KIT:PCBA:BRM20 RBU B/D	54	2168000052	KIS_9001C_LED:B_RANK:RED
13	5659000024	T/S:TOUCH PANEL:T101IS-5RB001X:HIGGSTEC	55	4933000114	WINDOW_ACRYL:MIRROR_SIDE:MX-7600
14	7000000192	UNIT:BRM20 RC_164 (RECYCLING CASSETTE)	56	7490000019	PCBA:NEC4PORT:USB:HUB:B/D:HIGH SPEED
15	S4350000597	GEAR:OD28ID06_KNOB	57	7111000011	UNIT:P/L:HPS500-ACDB:MX-7600T
16	S4251000004	SHAFT:GATE_BLADE_DEG20_CST	58	4370000678	K-ASSY_MOLD:COVER-BARCODE:MX-7600T IR
17	S4360000706	GUIDE:GATE_BLADE_DE20_BC_2	59	4370001121	UP-KIT:SUB-ASSY:REEL1
18	S4360000726	GUIDE:GATE_BLADE_DEG20_UTB_D	60	4370001122	UP-KIT:SUB-ASSY:REEL2
19	S4360000727	GUIDE:GATE_BLADE_DEG20_UTB_U	61	3281000248	CABLE ASSY:BNA BC ENCODER
20	S4360000728	GUIDE:GATE_BLADE_3WAY	62	5637000009	MICRO CLUTCH:BL-2.5-198
21	S7760000092	PCBA:BRM20 MAIN B/D	63	4240000020	KEY SET ASSY:1 SET/ I KEY
22	S7760000094	PCBA:BRM20 CSM B/D	64	7307000184	SUB_ASSY:RT_CASSETTE
23	S4380000032	KNOB:MOLD_KNOB_BRM20	65	7020000025	UP_KIT:UNIT:K-SPR8
24	S7660000015	PCBA:HBRM ID	66	7111000012	UP_KIT:UNIT:DC/DC:HPS200-FCE(TG):MX-7600
25	S4430000404	PULLEY:CLUTCH_KNOB	67	7307000026	UP_KIT:ASSY:DRIVE MODULE 01
26	S7760000095	PCBA:BRM20 RC B/D	68	7090000208	UP_KIT:UNIT:CE:MX-7600T:L440:N
27	S7000000183	UNIT:BRM20_UNIT_CSM	69	7307000209	UP_KIT:SUB_ASSY:MULTI_CURRENCY
28	S2168000050	KIS-9001C_LED:C_RANK:YELLOW	70	7307000222	UP_KIT:SUB_ASSY:ESCROW
29	S2168000054	KIS-9001C_LED:A_RANK:WHITE	71	4930000052	RAIL:CEB560(26-37):DRIVE-UP
30	S2168000068	OJ-461-N23 ( KIT 5039C )	72	5611000118	PCBA:TG_PC:MAINBOARD:ECS_EG31M
31	S2168000077	SENSOR_DD_KIS-9010C_LED	73	7760000054	PCBA:BNA_ MAIN
32	S2168000078	SENSOR_DD_KIS-9011C_DIODE	74	7900000929	UP-KIT:SUB:MOTOR 23KM 03
33	S32127902	CABLE_ASSY:DOOR_SENSOR:GIRO	75	7900000927	UP-KIT:ASSY:MOTOR 23KM 01
34	S7760000098	PCBA:BRM20_Shutter	76	7900000928	UP-KIT.ASSY:MOTOR 23KM 02
35	S7200000890	UP_KIT:SUB_ASSY:COLLAR_WING:MX87000T_NG	77	7900000930	UP_KIT:ASSY:MOTOR ESCROW
36	S4380000031	KNOB:MOLD_D45X7H_BMD	78	7900000931	UP_KITT:SUB-ASSY:CLUTCH-HS1130
37	S7490000022	PCBA:DUAL_USB-HUB:FULL SPEED	79	7900000932	UP_KIT:ASSY:SOL-GATE-5
38	7710000023	PCBA:BDM Sub B/D	80	7900000933	UP-KIT:ASSY:SOL-GATE
39	S5623000001	UP_KIT:INVERTER:AT-0150LG BIS	81	7900000935	UP-KIT:SUB_ASSY:DRIVE MODULE RTCST
40	3266000214	CABLE_ASSY_SHU:MOD SWITCH:MCD-10	82	S2101000165	NEC 4 PORT USB HUB
41	S7307000061	DRIVE MODULE 02	83	S3266002121	CABLE_ASSY_SYS:MODE SWITCH 1/
42	3205000027	CABLE_ASSY_CDU:1,2CST SENSOR 1/F	84	S45100508	BEARING:L-136022

Pics detail
