CRM9250 ATM Machine Parts Note Feeder Second Version For GRG

Product Categories

TS TECH (HONG KONG) CO.,LTD.

Contact Now

CRM9250 ATM Machine Parts Note Feeder Second Version For GRG

Ask Lasest Price
Brand Name :	GRG
Model Number :	YT4.029.095
Certification :	CO
Price :	negotiable
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	800pcs in stock
Delivery Time :	1day

Add to Cart

Product Details
Company Profile

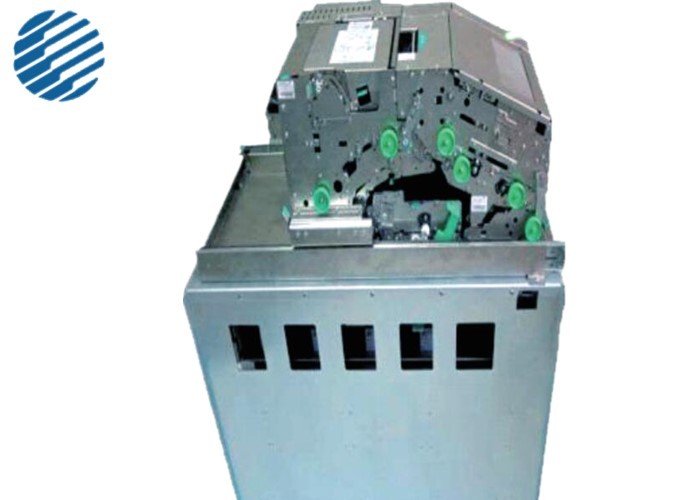

CRM9250 ATM Machine Parts Note Feeder Second Version For GRG

YT4.029.095 GRG Parts Recycling Machine CRM9250 Note Feeder Upper

YT4.029.095 GRG Parts Recycling Machine CRM9250 Note Feeder Upper

GRG ATM CRM9250

The CRM9250 is a GRG independent developed cash recycling module. With the state-of-the-art technology CRM9250 present a very high performance, with fast cash processing speed of 8 notes/ second, large capacity of 3000 notes per intelligent recycling cassettes plus one multifunctional cassette and flexible configuration.

Specification Media ranges: Length: 120-172mm Width: 60-85m Maximum notes per transaction: 200 notes Reliability: MTBF: 4,500 hrs; Jam Rate: <0.003%; Reject Rate: <1%；Acceptance Rate: >95%; Life: 10 years Communication interface: RS-232C (USB is optional); 57,600bps Baud Rates; CRC Verify mode. Weight: 125kg(Including 5 empty cassettes) Temperature: Operating:0-50 0C；Idle:0-50 0C； Storage: -100C -550C Humidity: Operating: 15-85%RH; Idle: 10-90%RH; Storage: 5-95%RH Power supply: Voltage: DC ＋36V +10%; Current: +12A; Power: Idle 50W, operating 430W

Company Profile

TS TECH (HONG KONG) CO.,LTD founded in 2003 in China,is a leading professional supplier of ATM modules and spares, and help hundreds of customers from around the world to source their NCR, Wincor,Diebold,hyosung,GRG parts.

TS TECH (HONG KONG) CO.,LTD has a professional sales and technical team.Most of our sales have more than 10years experience in ATM industry.Our sales know exactly what machine are used in each Market. They are also experienced in importing&exporting from each country.

It can save your communication times.

Our technical team consists of four members. We have top technicians for every brand.As all of them have years of working experience in manufacturers such as wincor diebold NCR hyosung.They can give you technical support.

We are a direct manufacturer in atm spare parts.our factory located in Guangzhou.TS also have good relationships with original manufacturer.we can get new original parts from manufacturer.

I trust TS can give you good support!

Product Specifications

GRG BANKING ATM parts list
ROW1	PARTNUMBER	Description	ROW2	PARTNUMBER	Description
1	YT4.029.020	NOTE FEEDER	34	YT8.401.046	MOD_T_PULLEY_MXL_F_27_08_12
2	YT4.100.208	NOTE CASSETTE	35	S.0100159RS	S_T_UPPER_BELT_B97MXL
3	YT4.100.207	R_REJECT_TRAY	36	S.0100161RS	S_DR_BELT_UPPER_B73MXL
4	S.0100143RS	BD_F2F_TIMING_BELT_80S3M351	37	S.0100162RS	S_DR_BELT_UPPER_B101MXL 6mm
5	S.0100147RS	BD_T2F_TIMING_BELT_80S3M177	38	S.0100160RS	S_CAM_DR_BELT_S3M129 MXL56T X6mm
6	YT2.503.143	PCB_CDM8240_ASSY (New Version support 6 hopper)	39	YT8.401.030	MOD_GEAR_M08_30_06_04_NEW
7	YT8.401.037	F_PICK_ROLLER_RUBBER	40	YT8.401.041	MOD_GEAR_M1_30_06_08
8	YT8.322.130	F_CR_ROLLER_ASSY	41	YT8.401.042	MOD_GEAR_M1_30_06_04_IDLE
9	YT8.322.114	F_T_ROLLER_1533_06_ASSY	42	YT8.401.040	MOD_T_PULLEY_S3M_22_08_22_MODEL
10	YT8.401.039	MOD_T_PULLEY_S3M_F_22_08_12_NEW	43	YT8.401.045	MOD_T_PULLEY_MXL_F_35_08_12
11	YT8.401.029	MOD_GEAR_M08_20_05_04_NEW	44	YT8.401.042	MOD_T_PULLEY_MXL_F_30_08_12
12	S.0100144RS	F_SS_TIMING_BELT_60S3M171	45	S.0070324RS	MOD_SENSOR_G310
13	S.0100145RS	F_SP_TIMING_BELT_60S3M144	46	S.0070325RS	MOD_SENSOR_DIG310D
14	S.0100331RS	F_TRANSPORT_BELT_INSIDE_10 SE-N-SMV1 10X235X0.65mm	47	A.RE006RS	MOD_SENSOR_U_SG248
15	S.0100332RS	F_TRANSPORT_BELT_OUTSIDE_10	48	S.0170244RS	MOD_BEARING_051405_STAINLESS
16	YT4.853.1080	CDM_NF_PM_CABLE_ASSY	49	S.0170216RS	MOD_BEARING_08120350
17	YT4.853.1078	CDM_NF_SENSOR_CABLE	50	S.0170213RS	MOD_BEARING_F_051004
18	YT6.336.019	T_DOUBLE_DETECTOR	51	S.0170233RS	MOD_BEARING_F_081404
19	YT6.303.013	T_TRANSPORT_RUBBER_ASSY_5	52	S.0170217RS	MOD_BEARING_081404
20	YT8.322.123	T_IMPELLER_08	53	S.0170201RS	MOD_BEARING_ F_ 061305
21	YT8.071.005	ENCODE_WHEEL_1	54	S.0170215RS	MOD_BEARING_06103
22	YT8.610.1181	T_MTT_PVC_BRUSH	55	S.0170248RS	MOD_BEARING_F_081605
23	S.0100156RS	T_TIMING_BELT_1ST 80S3M726	56	YT2.898.050	MOD_PCB_REED_SWITCH_1_ASSY
24	S.0100157RS	T_TIMING_BELT_2ND 80S3M564	57	YT4.853.1077	CDM_LL_ID_CABLE
25		MOD_T_PULLEY_S3M_F_22_08_12_NEW	58	S.0170239RS	MOD_BEARING_030905
26	S.0100346RS	T_TRANSPORT_INSIDE_1ST_BELT 105480.65mm	59	S.0060114RS	C_BOX_SOUTHCO
27	S.0100347RS	T_TRANSPORT_OUTSIDE_1ST_BELT 103670.65mm	60	YT4.853.2467	CDM_BND_CABLE-ASSY
28	S.0100348RS	T_TRANSPORT_INSIDE_4TH_BELT 102140.65	61	YT4.853.2468	CDM_SND_CABLE_ASSY
29	S.0100349RS	T_TRANSPORT_OUTSIDE_2ND_BELT 105640.65	62	S.0100305RS	P_LONG_T_BELT_LOWER
30	S.0100350RS	T_TRANSPORT_INSIDE_3RD_BELT 101840.65mm	63	S.0100353RS	P_LONG_T_BELT_UPPER SE-N-SMV1 108040.65
31	S.0100354RS	T_TRANSPORT_INSIDE_2ND_BELT SE-N-SMV1,103040.65mm	64	S.0100158RS	P_T_TIMING_BELT
32	YT8.671.059	Anti-Statics Electroinic brush	65	YT4.853.2052	MOTOR_TG_05IA_SR_28_CN089_ASSY
33	YT4.853.1665	MOD_BL_MOTOR_DRG-6034-001	66	YT8.081.040	GRG banking ATM parts Sankyo Card Reader Control Board

Pics detail

CRM9250 ATM Machine Parts Note Feeder Second Version For GRG
