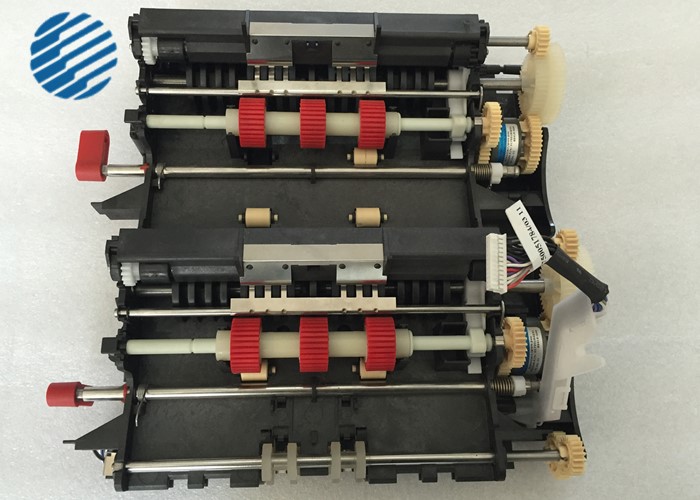

1750109641 Wincor Nixdorf ATM Parts Double Extractor Unit CMD-V4

• Product Detail

• Double dispensing unit without DDU (CMD-V4 or VCMD)

A pendulum dispensing shaft is installed for the note dispensing. The drive of

the extractor shaft is provided by the central motor as well as a magnetic

coupling for each extractor shaft. At one end of the extractor shaft there is a

pressure sensor through which the note contact pressure and the message

'Cassette pushed in' are checked. A forward motion of the notes is brought

about by an additional roller in the cassette. Preliminary separation is achieved

by means of an extended inlet slope in the cassette.

The cassette can readily be pushed into the rack with dispensing unit(s). They

engage in place and are locked in the final position. The cassette position is

queried by the pressure sensor. The cassettes can be unlocked with the

release lever on the rack.

Voltages and signals from the controller to the cassette are redirected through

the cassette connector.

• The following components are addressed in the dispensing unit.

1.Dispensing clutch

2.Retaining magnet

3. 'Note dispensing' photosensor

4.Cassette empty message' photosensor

5. Pressure sensor for 'Cassette pushed in' and 'Note contact pressure

Adjustment eccentric

The adjustment eccentric is part of the dispensing unit with which the

dispensing gap (V gap) can be set.

There are three settings for the

eccentric: Setting A, B and C.

In new deliveries, they are always set

to position A. If a replace dispensing

unit is supplied, its maximum setting is

B.

If the double dispenses from a single cassette in the CMD-V4 become more

frequent, the V gap on the corresponding dispensing unit can be decreased by

increasing both eccentrics (respectively to left and right of the shaft) by one

step, e.g. from A to B. If the V gap is set too high, than no dispensing from the

corresponding cassette will be possible.
