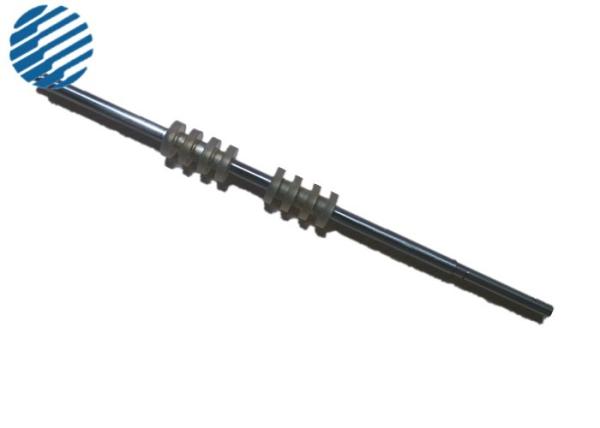

1750020811 Wincor ATM Parts Counter Rotate Shaft CMD V4 Original New

1750020811 Wincor Nixdorf ATM Parts CMD V4 COUNTER ROTAT Shaft

Ink Staining System

The cash media dispenser (CMD-V4) can be equipped with two different ink

staining systems.

If an ink staining system is installed read the respective service manual which

is supplied with the device:

1. Ink staining system SQS: 01750094340

2. Ink staining system Villiger: 01750094337

Full-service, independent repair center

with experienced engineers and technicians on staff.

We buy your excess, underutilized, and idle equipment

along with credit for buybacks and trade-ins.

Custom engineering

so your equipment works exactly as you specify

Dispensing in the direction of the customer

1. Dispensing of the requested banknote number one after another from

every cassette (overall max. 60) (k)

2. Transport of the single notes to the multiple-note detection unit (i)

3. Transport of single notes for serial number detection (configuration

dependent) (o)

4. All 'good notes' are stored in the stacking position of the clamp (e)

5. Clamp gets closed with the routing disk

6. Routing disk takes the vertical dispensing position (d)

7. Transport of the bundle to the cash-out position (b)

8. The shutter opens

9. Transport of the bundle to the removal position

10. Note output by the customer

11. The shutter closes

12. Clamp goes back to its stacking position and switches automatically

open (e)

1. - 4. Process as the dispensing in the direction of the customer (vertical

Frontload)

5. Routing disk takes the horizontal dispensing position Frontload (d)

6. Clamp moves in the direction of the dispensing (horizontal

Frontload) (n)

7. Routing disk moves to the reject/retract position (d)

8. Clamps moves in the reject/retract position

9. Routing disk moves to the reject/retract position "Block the route" (d)

10. Clamps moves in the reject/retract cassette as far as possible

11. Routing disks turns in the reject/retract position and moves the

clamp to its reject/retract position by that

12. Transport of the bundle in the reject box of the reject/retract cassette (g)

Product Detail

1	1750044672 V Module Side Guard Plate
2	1750041948 CMD-V4 38t 49t Gear
3	1750109641 1750192140 Wincor Red Puller V Module Shaft
4	1750041947 Wincor Nixdorf Clutch Assembly For 2050 XE. Magneta 24V
5	1750044668 Measuring Station Sensor Holder Ceramic Assd
6	1750041952 GEAR WHEEL G26 26T
7	1750041951 V Module 25T Gear
8	1750041950 GEAR WHEEL G17 17T
9	1750042174 GEAR WHEEL G19 19T
10	1750035778 DRIVE ROLLER SHAFT CMD V4 ASSY
11	1750035768 THICNESS MEASURING SHAFT ASSY
12	1750020811 Counter rotat shaft assy
13	1750035275 V Module Roller with 3 Wheel Shaft Assy
14	1750035776 DRIVE SHAFT CMD V4 ASSY
15	1750035773 Wincor Nixdorf CASH GUIDE XE
16	1750041251 Wincor Nixdorf Flat Belt, double extractor
17	1750035775 DOUBLE EXTRACTOR CHASSIS 01750035775
18	1750050076 Double Extractor Selenoid
19	1750035761 DOUBLE EXTRACTOR CHASSIS 01750035761
20	1750044604 MAGNET SUPPORT MDMS ASSD
21	1750051760
22	1750052437/1750051784/1750062190

Pics detail
