| Brand Name : | Nautilus Hyosung |
| Model Number : | S52200006799 / 52200006799 |
| Certification : | CO |
| Price : | negotiable |
| Payment Terms : | T/T, Western Union, MoneyGram |
| Supply Ability : | 1000pcs in stock |
| Delivery Time : | 1day |

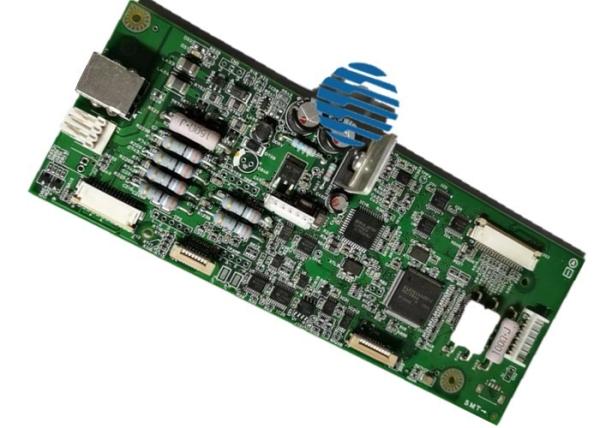

Hyosung ATM Motorized Card Reader ICT3Q8-3A2294 PCB S52200006799
Nautilus Hyosung ATM Parts CARD READER PCB S52200006799 8700T
52200006799
Applications | 1) ATM/CD 2) Kiosk terminals 3) Payment systems 4) Retail POS terminals 5) Access control terminals 6) Other ID terminals 7) Low profile type |
Features | 1) High reliability and durability 2) IC Card protocol handling for ISO and EMV Level 1 approved 3) Mechanism for warped card handling |
IC Contact | ISO/IEC 7816-Part1,2 and 3 Protocol Handling (T=0 and 1) EMV 2000 ver 4.0 Level1 approved |
Magnetic Stripe | ISO/IEC 7810,7811 series7813 R/W (Hi-Co write available : 2700Oe) |
Power Requirement | +24 V DC / 2.0A (2.5A at peak 50ms) |
Signal Interface | USB 1.1 |
Unit Life | More than 1,000,000 passes |
Dimensions | 112 mm(W) x 214 mm(D) x 68 mm(H) |
Connector | UBB-4R-D14-1(LF) (JST) for USB 22-05-1042 (MOLEX) for Power |
Mass | 1.7 kg approx |
| NAUTILUS HYOSUNG ATM parts list | |||||
| ROW1 | PARTNUMBER | Description | ROW2 | PARTNUMBER | Description |
| 1 | 7760000067 | PCBA:CST_M:CDU10 | 22 | 7120000089 | UNIT:BRM20_SHUTTER:MX8000TA |
| 2 | 7430000242 | UNIT_SUB_ASSY:SOL_SF | 23 | 7090000328 | UNIT:CE:FC_EX_G41:Core2duo:2GB:HDD1 |
| 3 | 4820000027 | BELT:T_BELT_W04L96_S3M | 24 | S5743000044 | PC:TG:H61:DualCore2.5G_G540:2GB:HDD1:ODD |
| 4 | 4820000028 | BELT:T_BELT_W08L516_S3M | 25 | 5611000125 | PCBA:NCM-V05F-2:USB CAMERA:THIRD:NAMUGA |
| 5 | 7310000405 | SUB_ASSY:ROLLER_PICK_UP_SF | 26 | 5611000126 | PCBA:NCM-V05F-2:USB CAMERA:SECOND:NAMUGA |
| 6 | 7310000408 | SUB_ASSY:MOTOR_PICK_UP | 27 | 7650000141 | PCBA:7PORT_SMSC_HS_USB_HUB_B/D:NH |
| 7 | 4400000090 | LEVER:LOCK_GUIDE_OUT_FM | 28 | S7020000032 | UP_KIT:UNIT:L-SPR3:INDIA |
| 8 | 4400000091 | LEVER:FIT_SF_LOCK | 29 | S5665000003 | UP_KIT:VIDEO.CARD:HD7350:PCI-E |
| 9 | 7430000445 | UNIT_SUB_ASSY:NOTE_SEPA_SF5 | 30 | S5693000025 | UP_KIT:HDD_3.5 INCH:SATA:320GB |
| 10 | 4380000027 | MOLD:KNOB_CAP_CST | 31 | S7310000733 | UP.KIT:SNB_ASSY:ESCROW (ASSY:CARRIAGE_ALL. ) |
| 11 | 4500000679 | MOLD:HINGE_CAP_CST | 32 | S3250000019 | UP_KIT:CABLE_ ASSY_SHU:END SEN |
| 12 | 5611000166 | PCBA:TOUCH CON:RES-05CUA_R20:RES:USB:S&T | 33 | S1010000055 | UP_KIT:CPU:DUAL CORE:E5700:LGA |
| 13 | 5659000024 | T/S:TOUCH PANEL:T101IS-5RB001X:HIGGSTEC | 34 | S3266000992 | UP_KIT:CABLE _ASSY:SYS:MULTI PO |
| 14 | 5611000268 | PCBA:AD_BD:NT101_VGA:10.1INCH:NEOTECH | 35 | S7090000310 | UP_KIT UNIT:FC_EX_G41:EX_G41:E5700:2G |
| 15 | 7650000034 | PCBA:AD GENESIS_ASSY_OSD B/D:SMALL SIZE | 36 | S7090000149 | UP_KITUNIT:CE:IG SAMBO:MX 560 |
| 16 | 7110000025 | UNIT:SPL:10.1INCH:MX8200T | 37 | S7307000177 | UP_KIT:SUB_ASSY:CST_NH_WW |
| 17 | 5621000034 | UNIT:P/S:750W:HPS750-BATMI | 38 | S56721401 | UP_KIT:PRINT:MDP_350:DOT_9WIRE |
| 18 | 5645000019 | UNIT:MCU:ICT3Q8-3A2294:SANKYO:M_driven | 39 | S7310000709 | UP_KIT: ASSY:MB |
| 19 | 7000000229 | UNIT:BRM20R-L124MG1HT-00 | 40 | S5621000002 | P/S:HPS250-GTTW:MX-7100T:TURKEY |
| 20 | 7010000209 | UNIT:CDU10_5CST_REAR_AUTO | 41 | S4520000535 | UP_KIT:K-ASSY:PAPER_TAKE_SH_D322-MECH07 |
| 21 | 7100000136 | UNIT:TILT_OPL_TC_NDC:MX_8200T | 42 | 3205000028 | CABLE_ASSY_CDU:3,4 CST SENSOR 1/F |
TS TECH (HONG KONG) CO.,LTD founded in 2003 in China,is a leading professional supplier of ATM modules and spares, and help hundreds of customers from around the world to source their NCR, Wincor,Diebold,hyosung,GRG parts.
TS TECH (HONG KONG) CO.,LTD has a professional sales and technical team.Most of our sales have more than 10years experience in ATM industry.Our sales know exactly what machine are used in each Market. They are also experienced in importing&exporting from each country.
It can save your communication times.
Our technical team consists of four members. We have top technicians for every brand.As all of them have years of working experience in manufacturers such as wincor diebold NCR hyosung.They can give you technical support.
We are a direct manufacturer in atm spare parts.our factory located in Guangzhou.TS also have good relationships with original manufacturer.we can get new original parts from manufacturer.
I trust TS can give you good support!
1. supply thousands of kinds of products including brands like Hyosung,
NCR, DIEBOLD, HITACHI, FUJITSU, WINCOR and so forth.
2. do OEM according to customers’ needs.
3. professional and quick online technical support and sollutions.
4. after-sale service is reliable.
5. prompt and on-time delivery.
|
|
