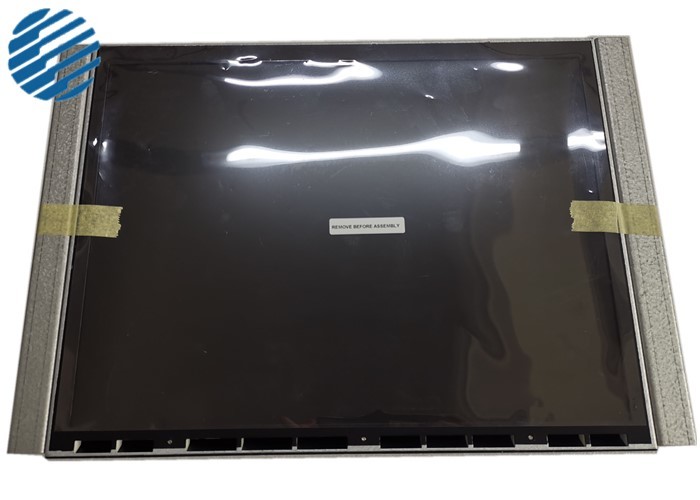

1750171633 Wincor ATM Parts Monitor 15" TFT LED High Bright Display

1750171633 WINCOR ATM Parts MONITOR 15" TFT LED HIGHBRIGHT Display

1750171633 WINCOR ATM Parts MONITOR 15" TFT LED HIGHBRIGHT Display

Monitor Description

The monitor includes a TFT (thin film transistor) active matrix LCD panel; AUO G150XG01;

and two LED rail and LED drivers to drive the backlight to a typical surface luminance of 2,000

nit. The 15” display area contains 1024 x 768 pixels and can display 16.2 mil colours.

This is a CLASS 1 LED PRODUCT.

Version 03 :

Base model with LCD cooling managed internally by three fans to control the LCD surface

temperature, located on the top rear of the monitor.

Parameter Specification

Description	15” WINCOR High Bright LED (With Genesis Controller)
GDS Part No.	G1500066
Customer Part No.	01750171633
Issue Level	3
Parameter	Module size
Module size	329 (W) x 260.5 (H) x 76.9 (D)mm
Panel Technology	TFT (Thin Film Transistor)
Active Area	304.1 (H) x 228.1 (V) mm
Number of pixels	1024 (R,G,B x 3) (H) x 768 (V) PIXEL
Pixel pitch	0.297 (H) x 0.297 (V) mm
Pixel arrangement	RGB Vertical Stripe
Display Mode	Normally white
Surface treatment	Antiglare and hard coating 3H
Number of Colours	16.2 mil

Optical Characteristics (AUO G150XG01)

Parameter		Unit	Min	Typ	Max	note
Screen Brightness Peak (max)		Cd/m2	1700	2,000		7
Screen Minimum Brightness		Cd/m2	250
Colour Temperature and co ordinates (LEDs + LCD panel)		K x y	0.304 0.342	5,800 0.324 0.362	0.344 0.382	8 9
BLU lifetime at 25oC (Full Brightness)		Hours		>100,000		1
Operating Temperature (Ambient)		oC	0	25	60
Option 1:- Power Consumption at 25oC from:- 24V DC supply (<1.8A) 12V DC supply (<1.7A)		Watts			43.2 20.4	2
Option 2:- Power Consumption at 25oC from:- 12V DC supply (<4.0A)		Watts			48	2
Viewing Angle CR>/= 10	Horizontal (a)	Deg.	60	70		3
	Horizontal (b)	Deg.	60	70		3
	Vertical (c)	Deg.	55	65		3
	Vertical (d)	Deg.	50	60		3
Contrast Ratio		-	400	750
Response time (Tr + Tf)		ms		16
Uniformity		%	70	>80		5
MTBF (excluding back light)		hours		89,103		6

Note [1] LED lifetime at 25oC ambient to 50% of the original brightness. Condition: Normal

operation 2000 nits for 24hrs per day.

Note [2] Results obtained with GDS LEDs running at maximum output and fans running at

maximum speed. Results will vary with temperature and ambient light. Note display

shall accommodate both Option 1 & 2 power inputs.

Note [3] See Fig. 1 Viewing Angle

Note [4] Contrast Ratio = Luminance with all pixels white/ Luminance with all pixels black.

See Fig. 3

Note [5] Uniformity = (Lmin/Lmax). See Fig. 2

Note [6] Calculated at 25oC Refer to MTBF00004 for further information. This is a nominal

figure.

Note [7] Luminance boost option only available if power consumption can be >48W.

Note [8] Typical CRI for Cool White LEDS (3,700 K – 10,000 K CCT) is 75.

Note [9] The target numbers in the specification for x and y values will be revised once

production has started and more information is available on the component tolerances.
